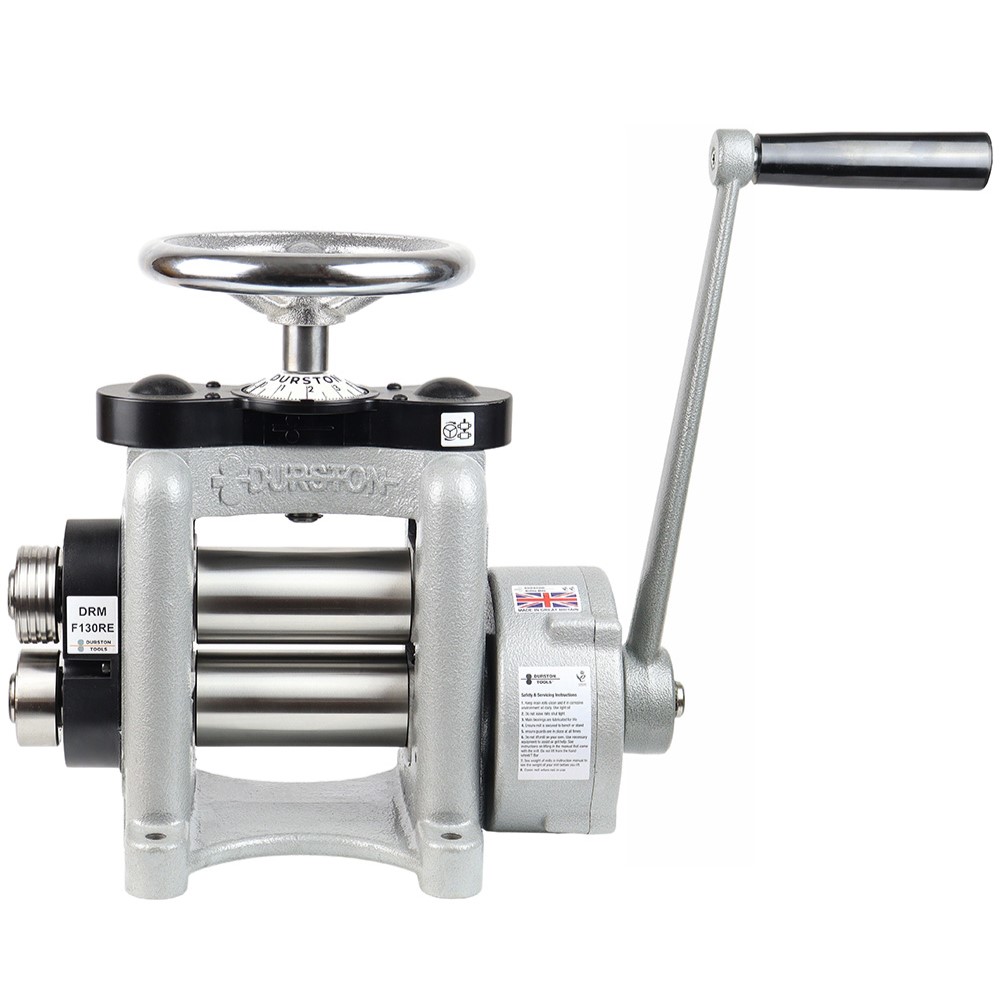

Rolling Mill DRMF130RE Durston
The Durston rolling mill DRM F130RE is primarily designed for rolling flat sheet metal up to 100mm. Features: 5-to-1 Reduction Gearbox, Side Extension with Half Round Rolls (4-1.5mm), Maximum Sheet Thickness of 6mm, Roll Diameter 60mm, Roll Width 130mm.
Available on back-order
2 155,00€pc / pc price without VAT 1 737,90€
Description
The Durston DRM F130RE Rolling Mill features our 5-to-1 Reduction Self Lubricating Gearbox giving superb smoothness and power when rolling materials up to 6mm thick, designed specifically for rolling flat sheet metal up to 130mm.
The DRM F130RE also includes side extension rollers with 4 half round profiles, 4mm x 1.25mm, 3mm x 1mm, 2mm x 0.75mm, and 1.5mm x 0.5mm giving even more flexibility for professional Jewellery Makers.

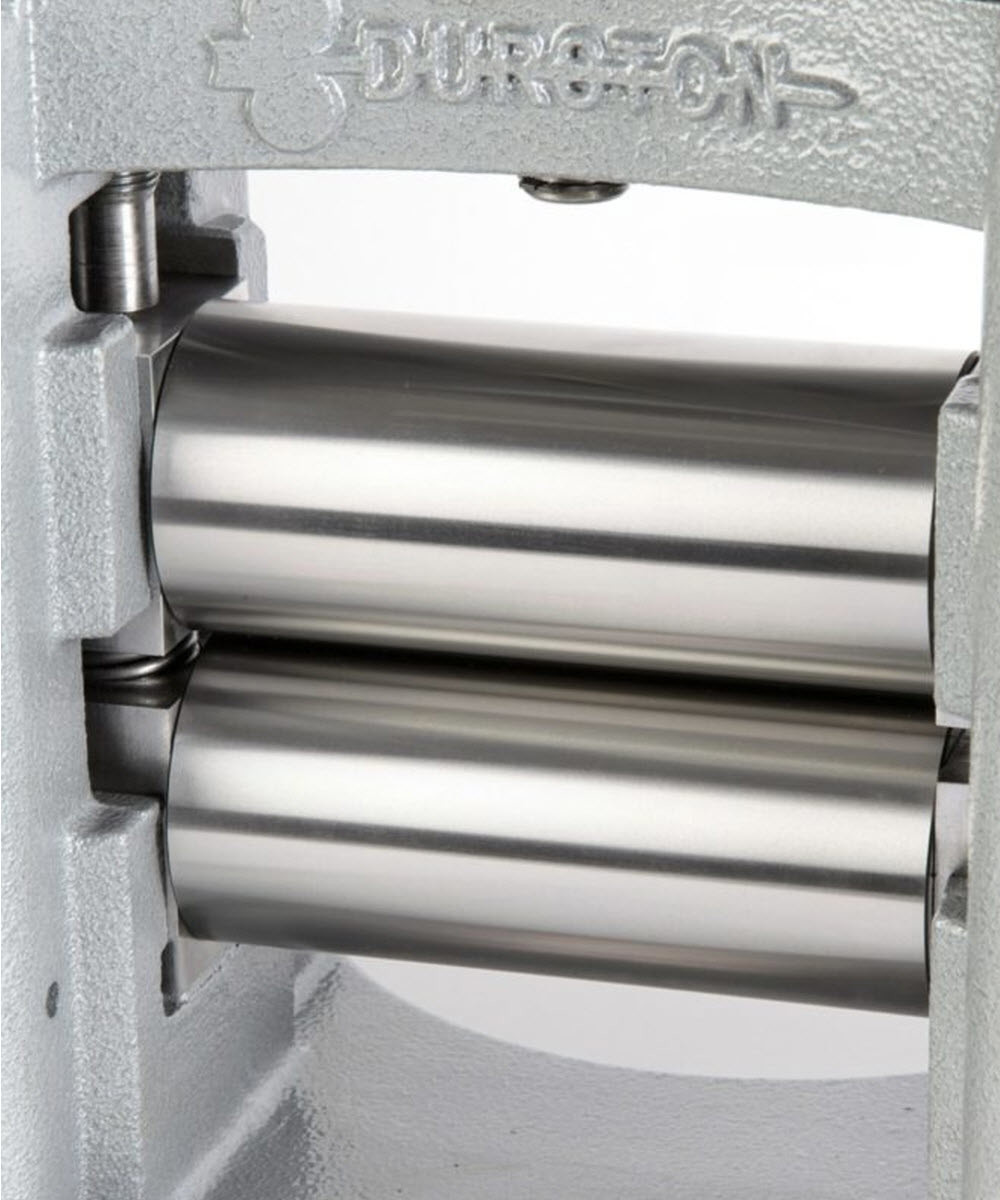

Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.
The DRM F130RE is designed to primarily to roll flat sheet metals and and half round wire (using the side extension) .
| Weight | 45.3 kg |
|---|---|
| Product Weight (kg) | 45.3KG |
| Product Length (mm) | 410 |
| Product Width (mm) | 220 |
| Product Height (mm) | 365 |
| Gearbox | 5-to-1 gearbox |
| Max. Sheet Thickness (mm) | 6 |
| Roller Type | Flat |

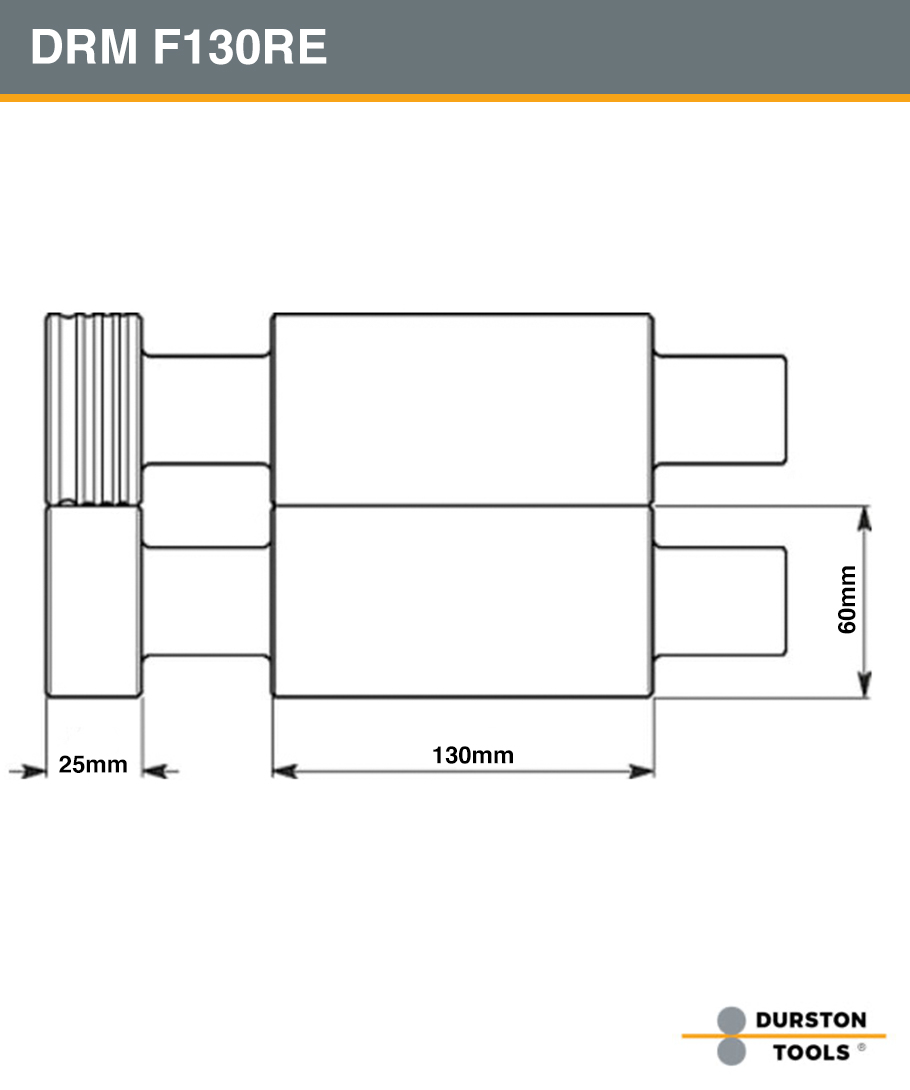

| Roller diameter (mm) | 60 |
| Roller Length (mm) | 130 |
| Side Extensions | 4, 3, 2, 1.5mm |
Additional information
| Weight | 45.500 kg |
|---|---|
| Dimensions | 410 × 220 × 365 mm |
| Brand |
Durston |
| Colour |
Grey |
