Combination Rolling Mill Agile C165 Durston

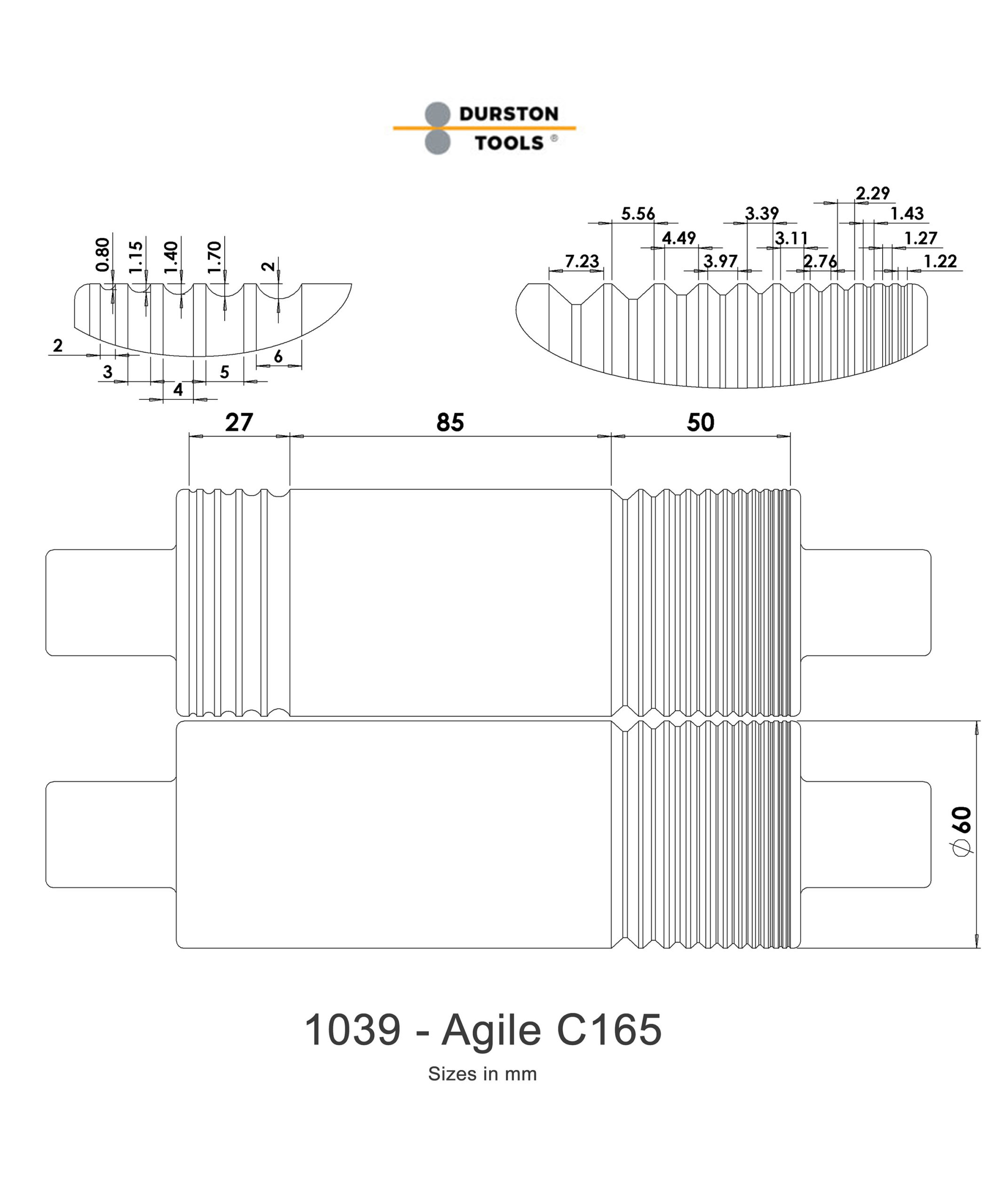

Durston’s massive capacity combination Agile C165 rolling mill continues the Durston tradition of super strong design to support each load effortlessly, with no compromise on quality. You’ll find 5 half-rounds as part of the main roller with a huge 85mm flat area and 11 square grooves.
Available on back-order
1 944,00€ pc / pc price without VAT 1 567,74€
Description
Durston’s massive capacity Agile C165 continues the Durston tradition of super strong design to support each load effortlessly, with no compromise on quality. You’ll find 5 half-rounds as part of the main roller with a huge 85mm flat area and 11 square grooves.
The Agile C165 matches the rest of the Durston range with rolls that are specially induction hardened to 64 RC and the main barrel to a depth of 6mm, giving you a lifetime of service. Durston is proud to manufacture all their rolling mills in-house to ensure strict quality control. Durston machines, hardens and grinds the rolls in their High Wycombe factory. The bearing blocks are fully supported, self-lubricating and completely maintenance-free – giving the best possible rolled finish. Durston’s unrivalled five-to-one gearbox makes for easy turning, while behind the cover, you’ll find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears. The Agile C165 Rolling Mill – part of Durston’s award-winning range of products, available since 1961.
| Weight | 42.95 kg |
|---|---|
| Product Weight (kg) | 39.7KG |
| Product Length (mm) | 435 |
| Product Width (mm) | 220 |
| Product Height (mm) | 365 |
| Gearbox | 5-to-1 gearbox |
| Number of Grooves | 11 |
| Half round sizes (mm) | 3 & 2mm, 4, 5, 6 |
| Roller Type | Combination |
| Roller diameter (mm) | 60 |
| Roller Length (mm) | 165 |
| Side Extensions | None |
| Max. wire capacity (mm) | 8mm |
| Range | Agile |
Additional information
| Weight | 42.950 kg |
|---|---|
| Dimensions | 435 × 220 × 365 mm |
| Brand | Durston |
