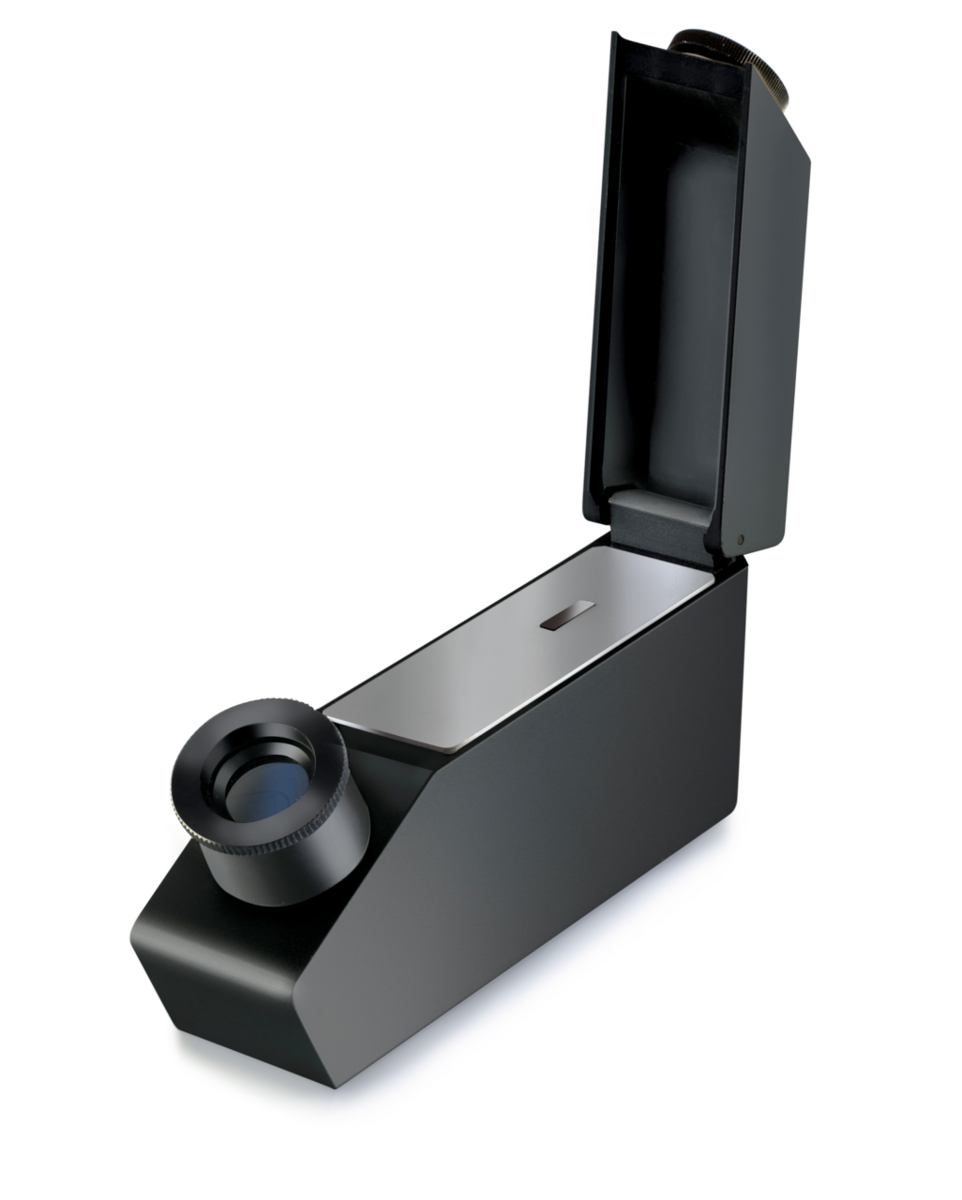

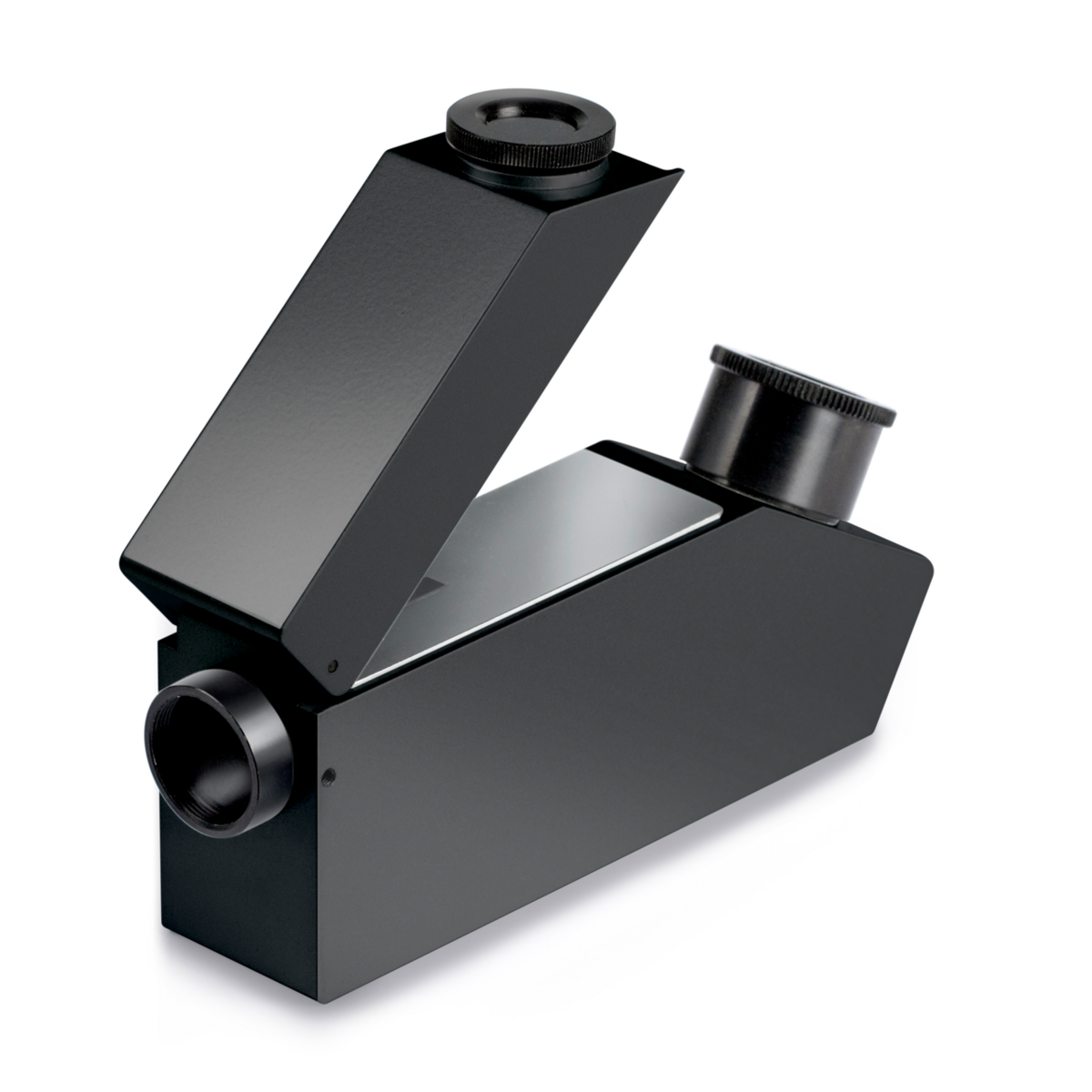

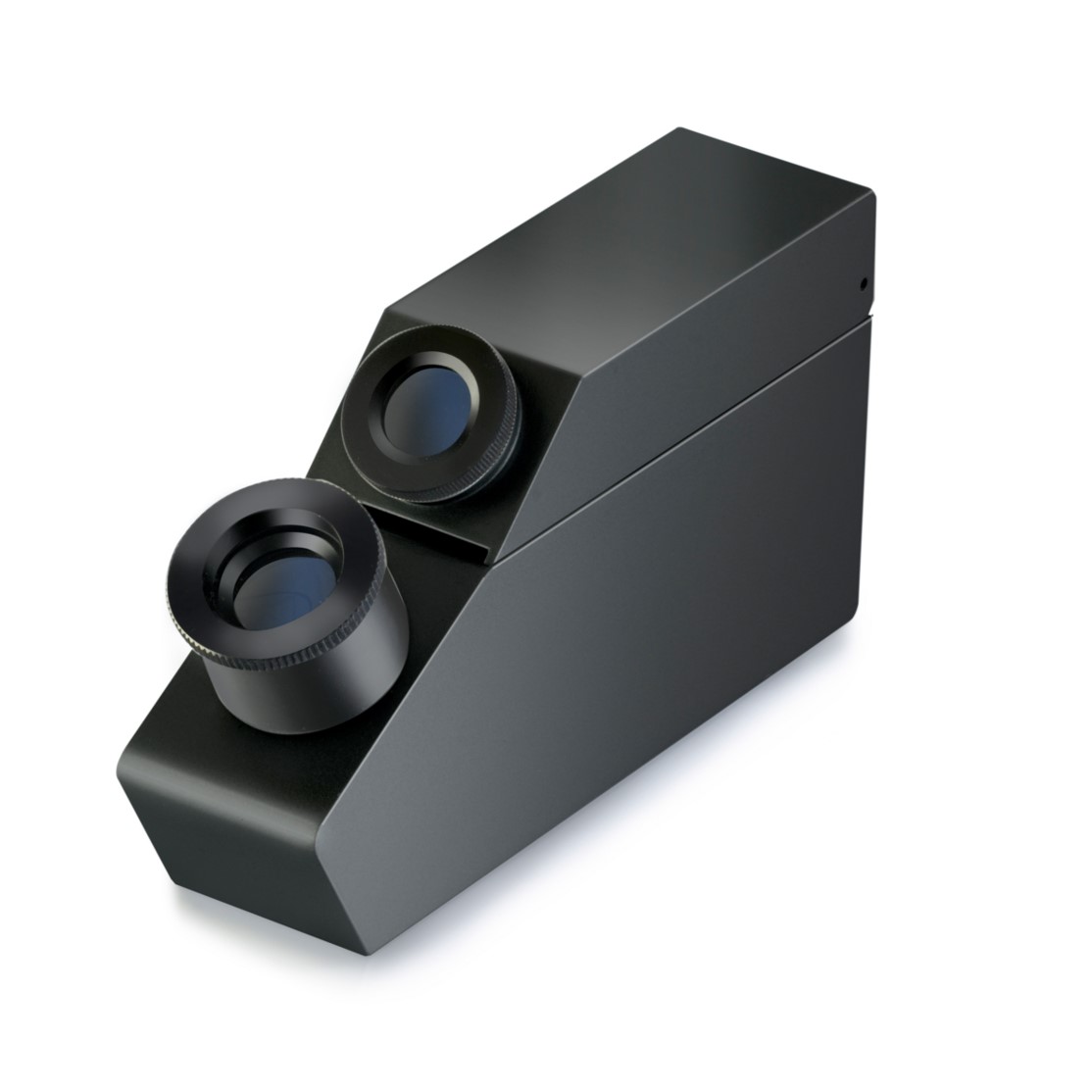

Analogue refractometer 1,30–1,81 nD, KERN
Analogue refractometer ORA 1GG Refractive index measurement for laboratories and the industry.
Available on back-order
Delivery time: 2-4 weeks
355,00€ pc / pc price without VAT 286,29€
Description
- The models in the KERN ORA-G range are universal, maintenance-free analogue manual refractometers
- The handy and robust design allows the easy, efficient and sustainable use in everyday life
- These scales are especailly developed, exactly calculated and checked. They are also characterized by their thin and clear lines.
- The optical system and the prism cover are made of special material which allows a low-tolerance measuring.
- All models are fitted with an eyepiece which can be adjusted easily and smoothly to different visual capacities
- Included with the delivery:
– Storage box
– Calibration block
– Contact liquid
– Pipette
– Cleaning cloth - Further accessories are available optionally.

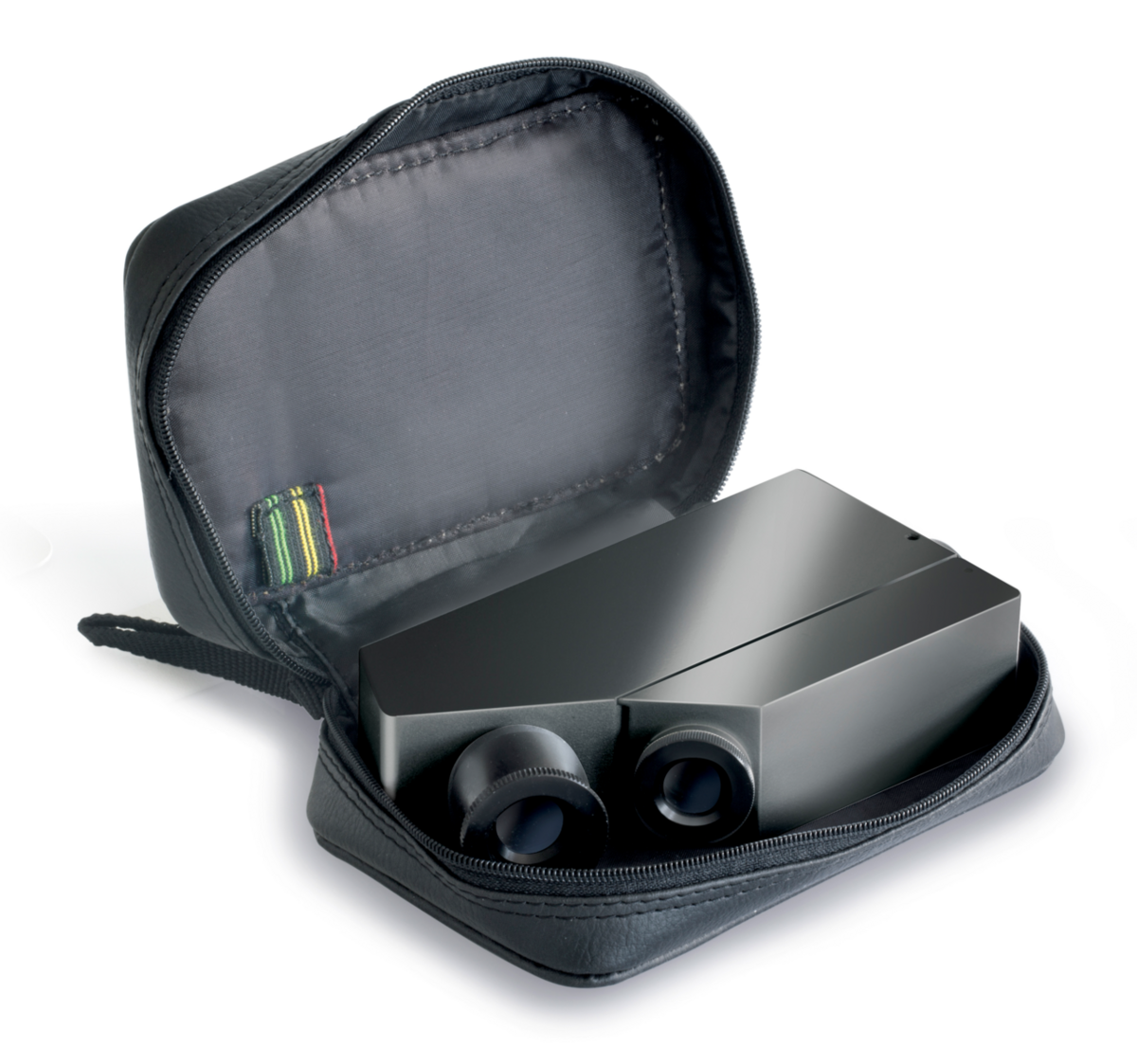

- This model has a special refracting-index range for jewellery. For this refractometer there is a nice leather bag in the scope of delivery included.
Main fields of application / Primary application areas
- Jewellers
- Jewellery industry
- Training
TECHNICAL DATA
- Measurement temperature 10 °C
- Overall dimensions W×D×H 137×70×32 mm
- Net weight approx. 0,75 kg
| Refractometer type | Handheld refractometer |
| Scale – Display type | Analogue |
| Area of application | Gemmology/Jewellery |
| Measuring method | Total reflection |
| Measurement temperature (°C) | 10 °C – 30 °C |
| IP protection – complete device | – |
| Dimension (W×D×H) | 137×70×32 mm |
| Scale for Refractive index | yes |
| Measuring range refractive index | 1,30 nD – 1,81 nD |
| Readout refractive index | 0,01 nD |
| GTIN/EAN number | 4045761159891 |
Additional information
| Weight | 1.000 kg |
|---|---|
| Dimensions | 137 × 70 × 32 mm |
| Brand | KERN |
