Double D4 Durston

Description

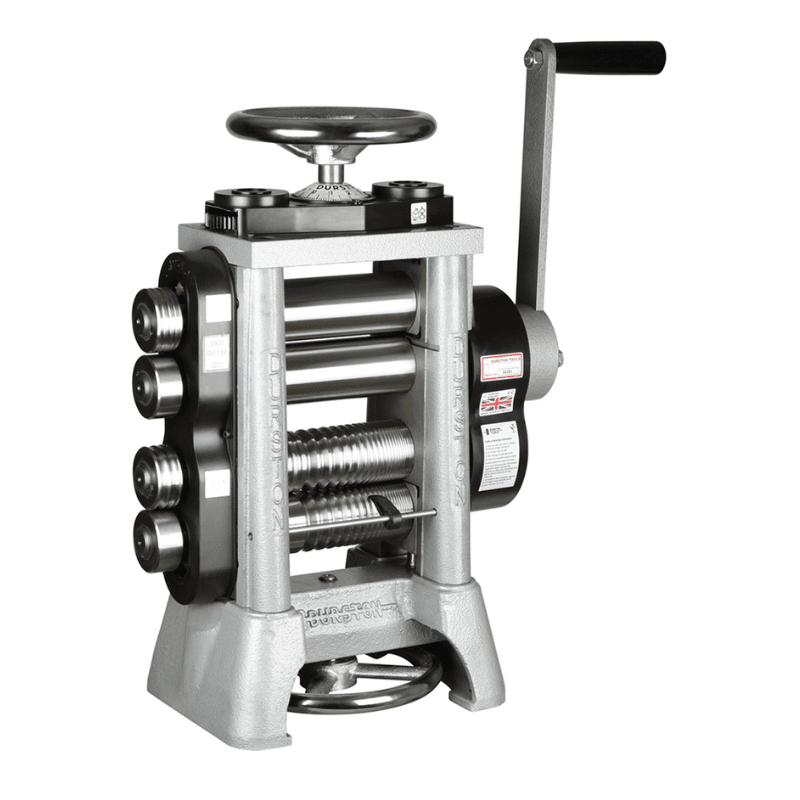

Durston Double D4 Rolling Mill: Precision and Power Combined

The Durston Double D4 Rolling Mill is a powerful and versatile tool designed to meet the needs of professional jewellers. With two sets of rolls, this exceptional rolling mill offers unmatched flexibility and precision in metalworking. The top set is dedicated to flat rolling, while the bottom set is grooved for square wire rolling. Both sets also feature extension rollers for added versatility.

Dual Functionality for Maximum Efficiency

One of the standout features of the Double D4 is its dual functionality. The top rolls offer an extra-wide flat rolling area of 158mm, with a roll diameter of 60mm, allowing for a maximum roll thickness of 6mm. The bottom rolls are equipped with 19 square wire grooves, enabling precise wire rolling from 10mm to 1mm. Additionally, the bottom rolls include three half rounds for further customisation, making this mill ideal for a wide range of jewellery-making tasks.

Easy Adjustment and Quick Lever Changeover

The Double D4 Rolling Mill comes with two turning levers, each designed for specific rolling tasks. The first lever, with an 11-to-1 gear reduction, is perfect for heavy rolling, providing maximum torque. The second lever, featuring a 5-to-1 gear ratio, doubles the turning speed for lighter jobs. Changing between levers is quick and easy, taking just a few seconds, and ensuring seamless operation during different tasks.

Built for Durability and Longevity

Constructed from a single piece of cast iron, the Double D4 is designed for maximum rigidity and strength. All rollers are induction hardened to 64RC, ensuring they last a lifetime. Safety is a priority, with all gearing covered in plastic housing to protect the user. The side extensions further enhance this mill’s versatility, allowing half-round rolling from 8mm down to 1.5mm.

The Durston Double D4 Rolling Mill is an exceptional workhorse that will provide years of reliable service, making it an essential tool for any professional jewellery workshop.
